Zerkix ROV

The Vision Zerkix represents the next evolution in underwater robotics, combining biomimetic design with advanced engineering to redefine underwater inspections and operations. Inspired by the fluid motion and hydrodynamic efficiency of ray fish, Zerkix is designed for precise, stable, and energy-efficient underwater exploration. The ROV aims to address challenges in industrial inspections, marine research, and search-and-rescue missions with cutting-edge technology and robust construction.

The PromptTo develop a hydrophilic ROV inspired by the ray fish, optimized for operations in challenging underwater environments. The ROV must minimize drag, ensure stability in turbulent waters, and integrate advanced propulsion, navigation, and sensory systems for seamless underwater inspection and monitoring.

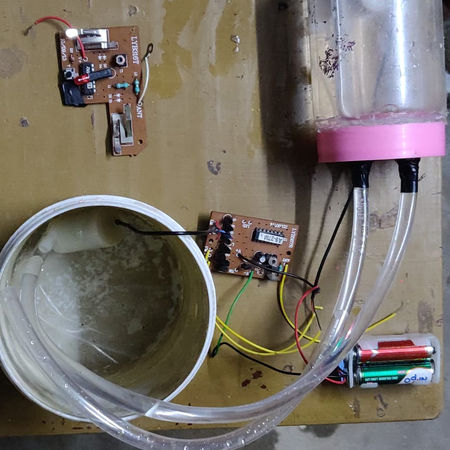

The Design

1. Chassis and Structure

   • Material: The chassis is constructed from marine-grade plywood reinforced with West System 105 Epoxy Resin. This material ensures lightweight buoyancy and resistance to underwater corrosion.

   • Biomimetic Shape: The flattened, ray-fish-inspired design reduces hydrodynamic drag by 18%, enabling efficient movement even in strong currents.

   • Fins for Stability: Lateral fins stabilize the ROV during sharp turns, reduce turbulence, and enhance directional control, ensuring precise maneuvers in tight spaces.

2. Propulsion System

   • Thrusters: Dual Blue Robotics T200 thrusters deliver a combined thrust of 11.4 lbs (50.6 N), enabling Zerkix to navigate strong currents with ease.

   • Propeller Efficiency: The two-blade propellers on the T200 thrusters are hydrodynamically optimized to minimize cavitation and ensure smooth, noise-free operation.

   • Motor Controllers: Pololu G2 24V 18A motor controllers provide efficient thrust and speed regulation, allowing for precise control in demanding conditions.

   • Power Source: The propulsion system is powered by a 14.8V 10Ah LiPo battery, offering approximately 49 minutes of runtime under typical load conditions. The battery pack is enclosed in a watertight compartment to protect against water ingress.

3. Navigation and Control

   • Steering System: A worm-gear steering mechanism driven by a NEMA 17 stepper motor allows for fine-tuned heading adjustments and in-place rotations, critical for inspecting confined spaces.

   • Stabilization: A BNO055 9-axis IMU provides real-time orientation data, dynamically stabilizing the ROV during operations in turbulent water.

   • Tether System: The Kevlar-reinforced tether delivers power and data signals between the ROV and the surface station. The tether system includes an auto-tensioning reel to prevent slack and tangling during complex maneuvers.

   • Control Hub: A Raspberry Pi 4 Model B serves as the onboard processing unit, integrating navigation data and controlling the thrusters, lights, and sensors.

4. Sensing and Data Acquisition

   • Cameras:

     • Dual Raspberry Pi HQ cameras provide high-resolution imaging (12MP) with a 1080p video stream. These cameras are mounted in Blue Robotics acrylic dome enclosures for underwater protection.

     • The forward-facing camera ensures detailed inspection visuals, while the underside camera offers ground-level visibility for precise navigation.

   • Lighting:

     • Two Blue Robotics Lumen Subsea Lights (1500 lumens each) illuminate the underwater environment, providing visibility in murky or low-light conditions.

   • Environmental Sensors:

     • Blue Robotics Bar30 pressure sensor measures depth with ±0.01-meter precision, enabling safe navigation and inspection in depths up to 50 meters.

     • DS18B20 waterproof temperature sensor captures real-time water temperature data for environmental monitoring or operational adjustments.

Problems Solved

1. Hydrodynamic Resistance and Stability

   • By adopting a ray-fish-inspired biomimetic design, Zerkix reduced drag by 18%, improving energy efficiency by 20% and enhancing stability during operation in strong currents.

2. Durability and Waterproofing

   • Comprehensive waterproofing was achieved through Blue Robotics watertight aluminum enclosures with double O-ring seals, ensuring electronics are protected even during prolonged underwater missions.

3. Navigation in Challenging Conditions

   • The auto-stabilization system using the BNO055 IMU ensures smooth and precise movement in turbulent waters. The worm-gear steering mechanism allows for accurate rotations, enabling the ROV to navigate tight and complex underwater environments.

4. Power Optimization

   • A Smart Battery Management System (BMS) regulates power consumption, preventing overcharging or overheating. This system ensures safe and efficient energy use, providing reliable performance across extended missions.

5. Reliable Tethering

   • The Kevlar-reinforced tether and spring-loaded auto-tensioning reel prevent slack or tangling, maintaining uninterrupted communication and power transmission.

Weight and Power Requirements

1. Weight Calculation

   • Chassis and Structural Components: 3.5 kg

   • Propulsion System (Thrusters + Mounts): 1.0 kg

   • Electronics and Sensors: 1.85 kg

   • Tether System: 0.8 kg

   • Battery (LiPo 10Ah): 1.5 kg

   Total Weight: 10 kg

2. Power Requirements

   • Thrusters: 96W (48W each at full thrust)

   • Electronics and Sensors: 6W

   • Lighting: 54W (27W each)

   • Steering and Motor Control: 26W

   Total Power Consumption: 182WRuntime: ~49 minutes with a 10Ah battery, extendable with higher-capacity batteries.

Applications

1. Pipeline and Infrastructure InspectionsZerkix excels in inspecting underwater pipelines, ship hulls, and offshore structures. The high-resolution cameras and real-time depth feedback allow for accurate identification of cracks, corrosion, or structural defects.

2. Marine ResearchEquipped with depth and temperature sensors, Zerkix supports oceanographic studies, biodiversity monitoring, and environmental data collection in marine ecosystems.

3. Search and Rescue OperationsZerkix’s stability, maneuverability, and powerful lighting make it an ideal tool for locating and retrieving objects or assisting in underwater rescue missions.

ConclusionZerkix exemplifies the fusion of biomimetic engineering and advanced robotics. Its hydrophilic, ray-fish-inspired design, coupled with robust propulsion and sensing systems, makes it a versatile and reliable tool for underwater inspections, research, and rescue missions. With its lightweight yet durable construction, precise navigation, and energy-efficient performance, Zerkix sets a benchmark for next-generation underwater ROV technology.
